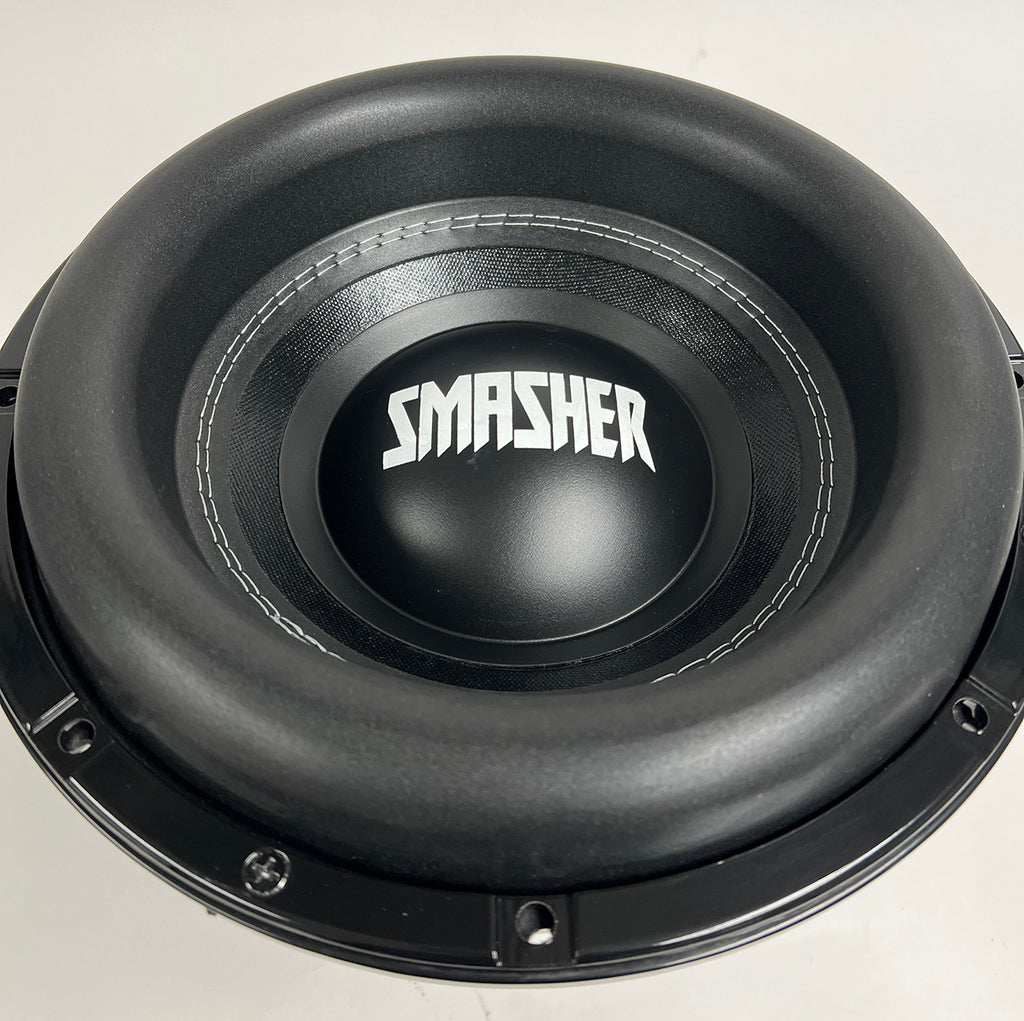

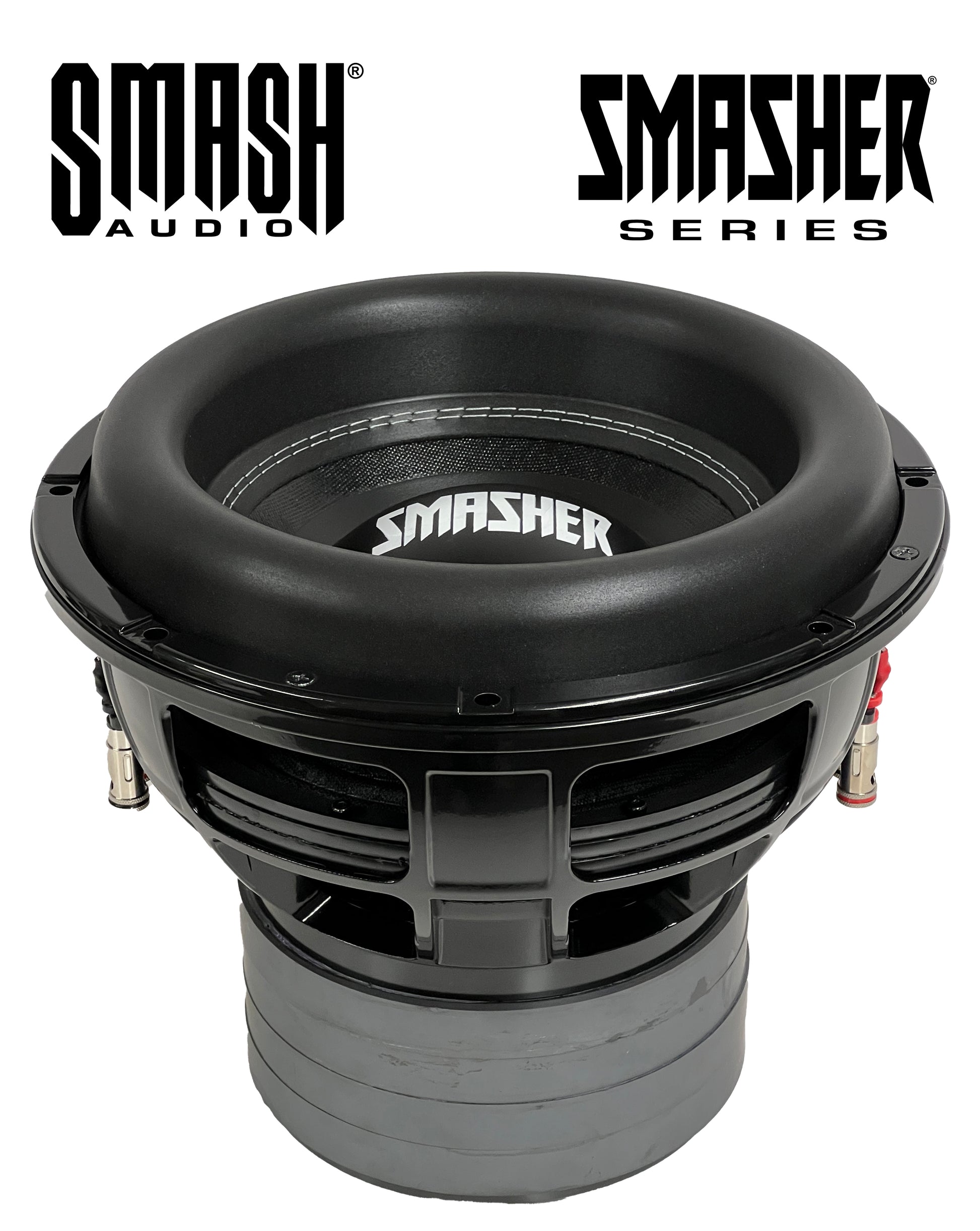

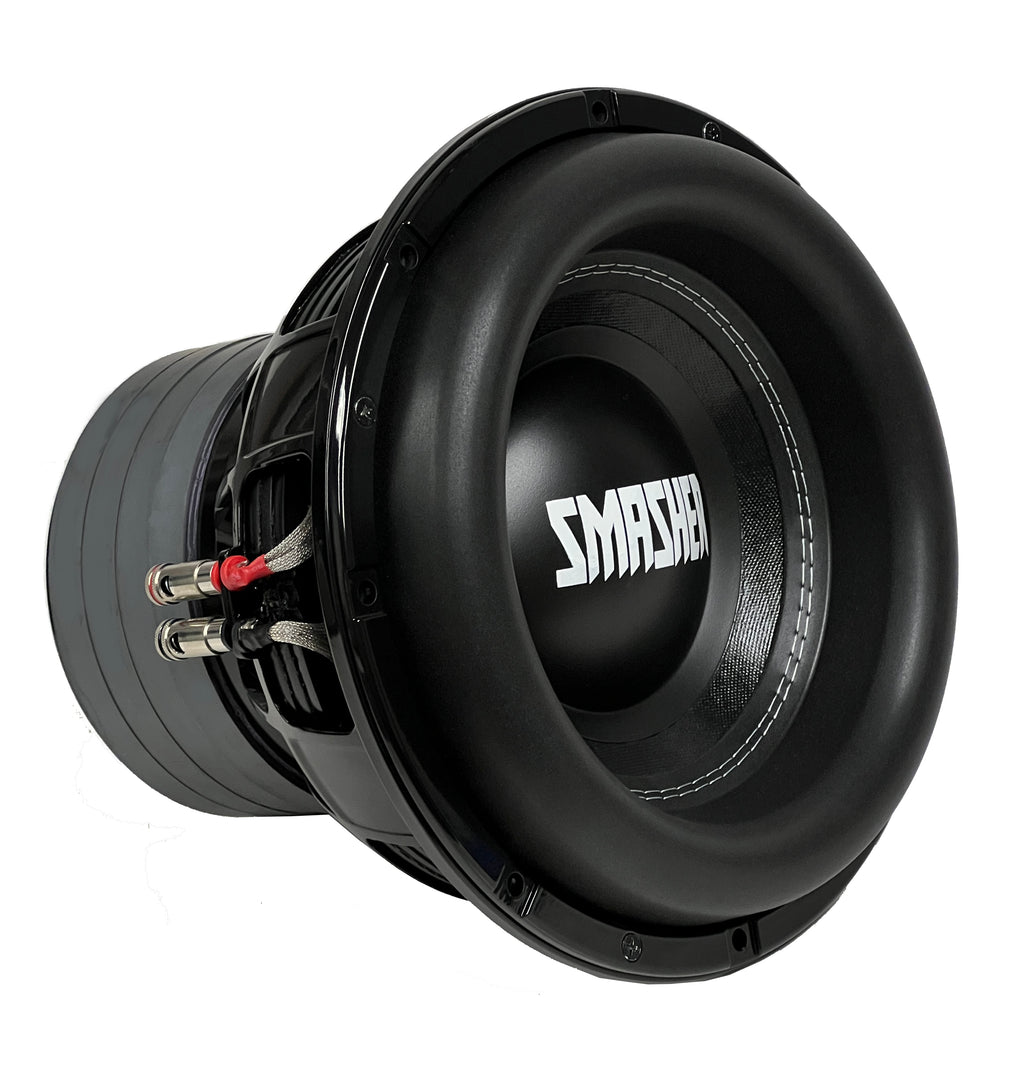

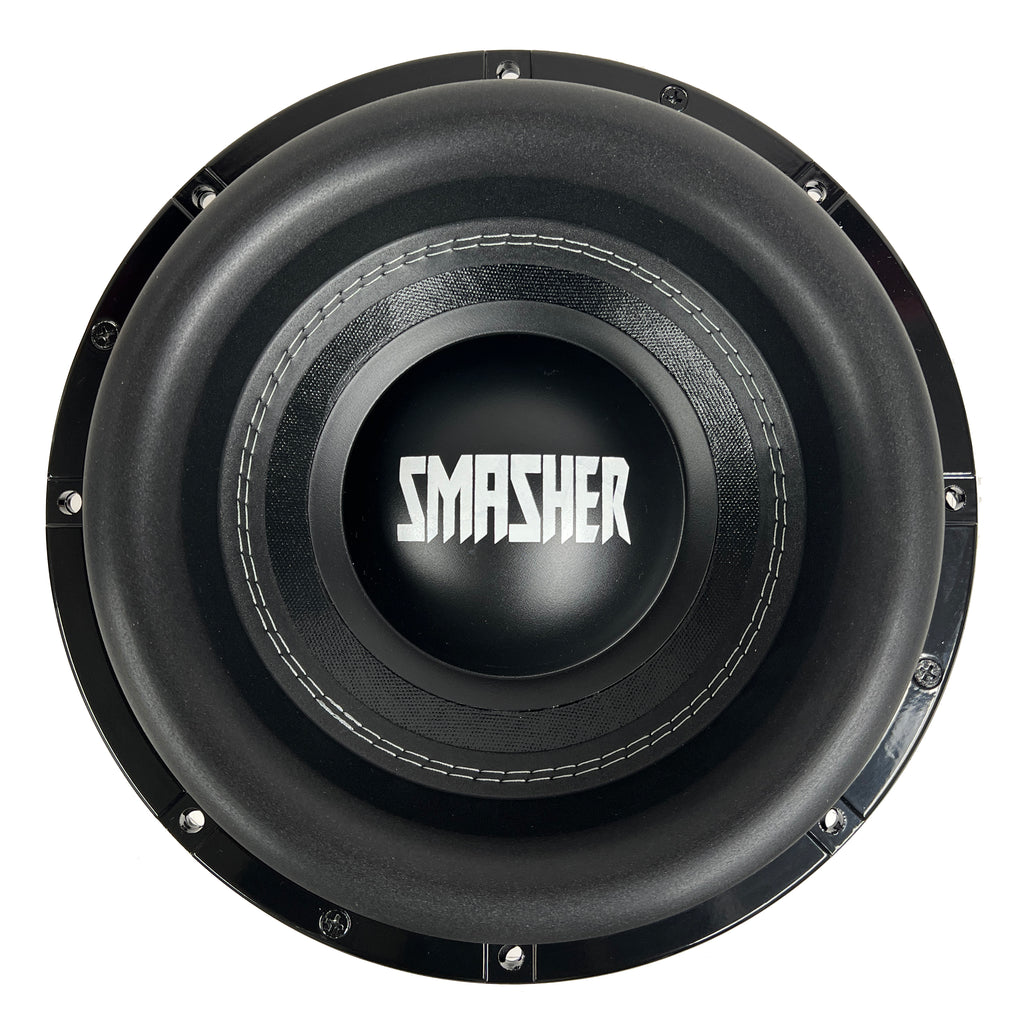

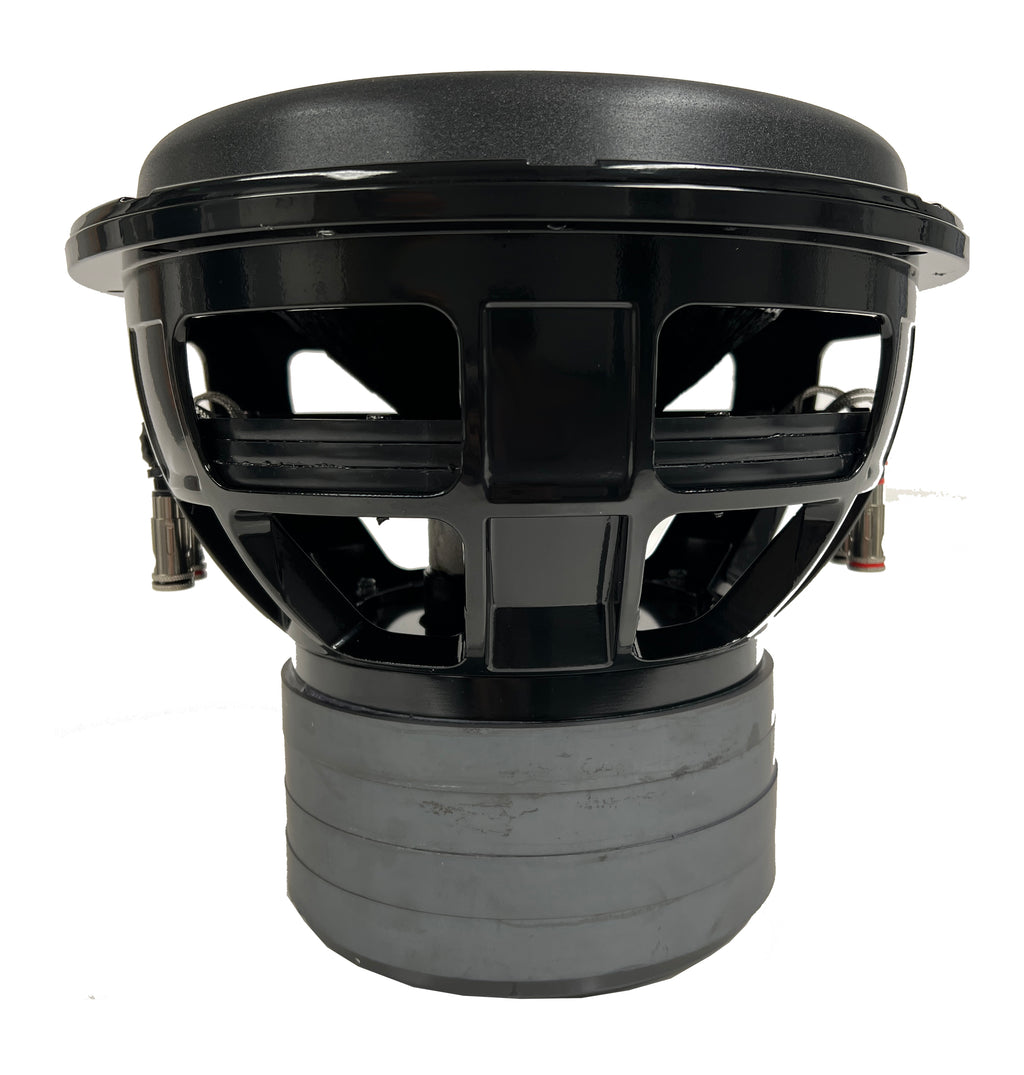

12" Smasher Series

 Features:

• 3000W Max, 1500W RMS

• Dual 4 ohm impedance

• Die-cast aluminum frame

• Non-pressed paper cone

• Stitched foam surround

• PP dust-cap

• Hi-temp 3" 4 layer black coated CCAW V.C.

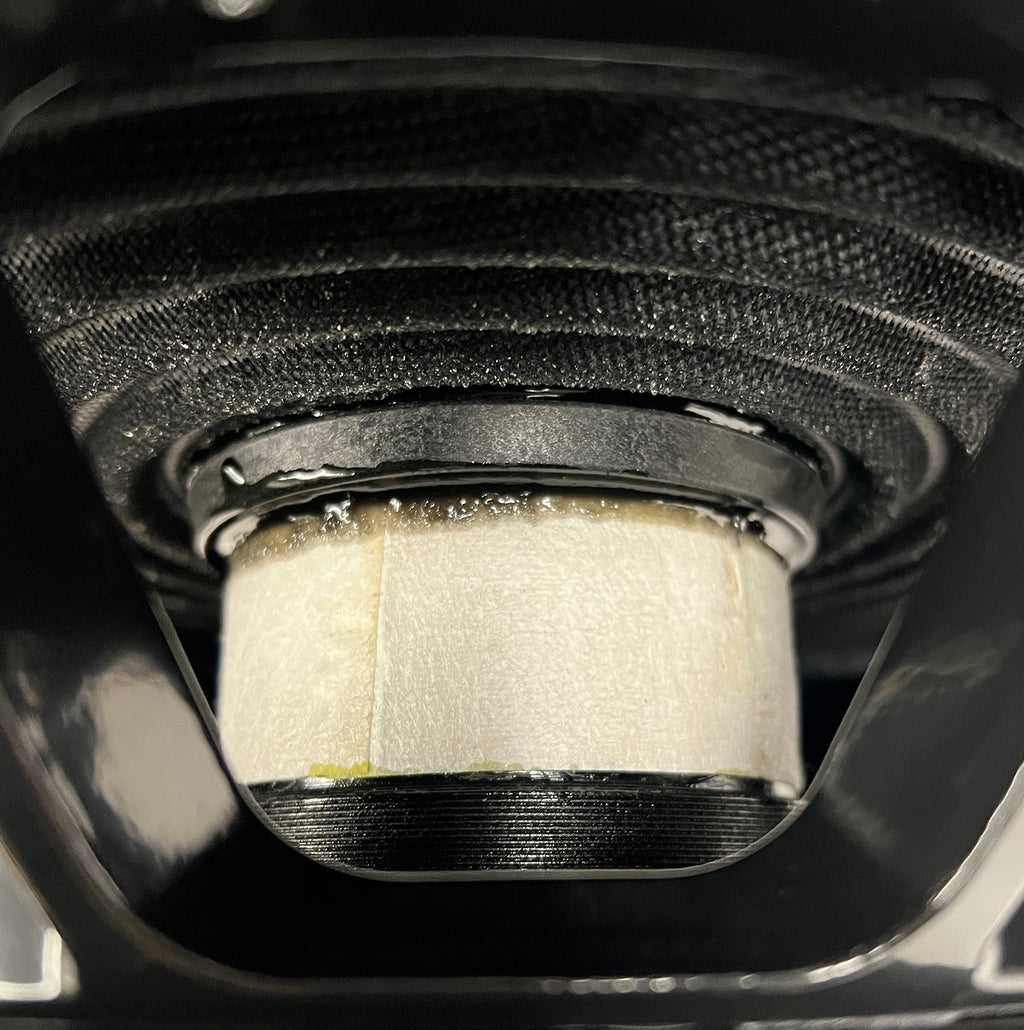

• Poly-cotton spider pack

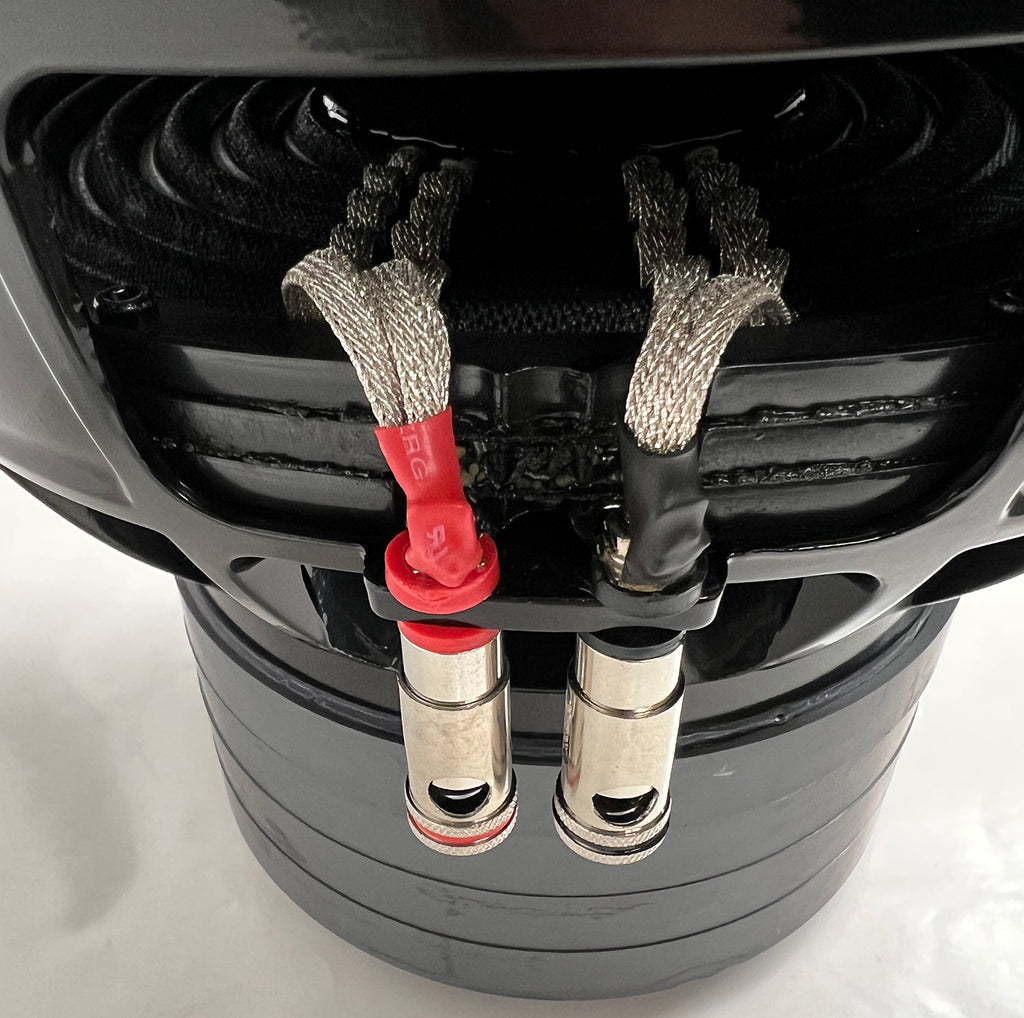

• Dual braid flat tinsel leads

• XL push terminals

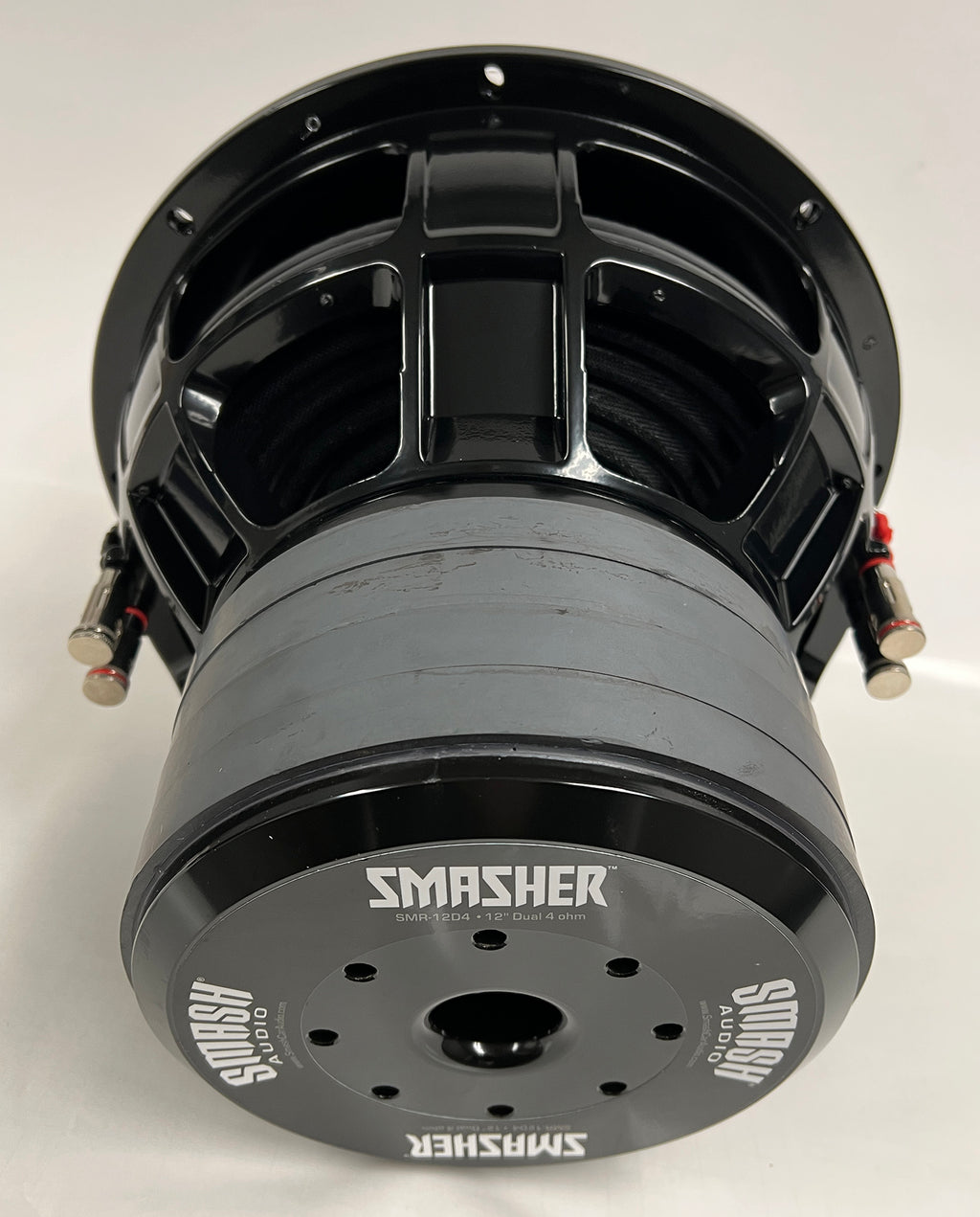

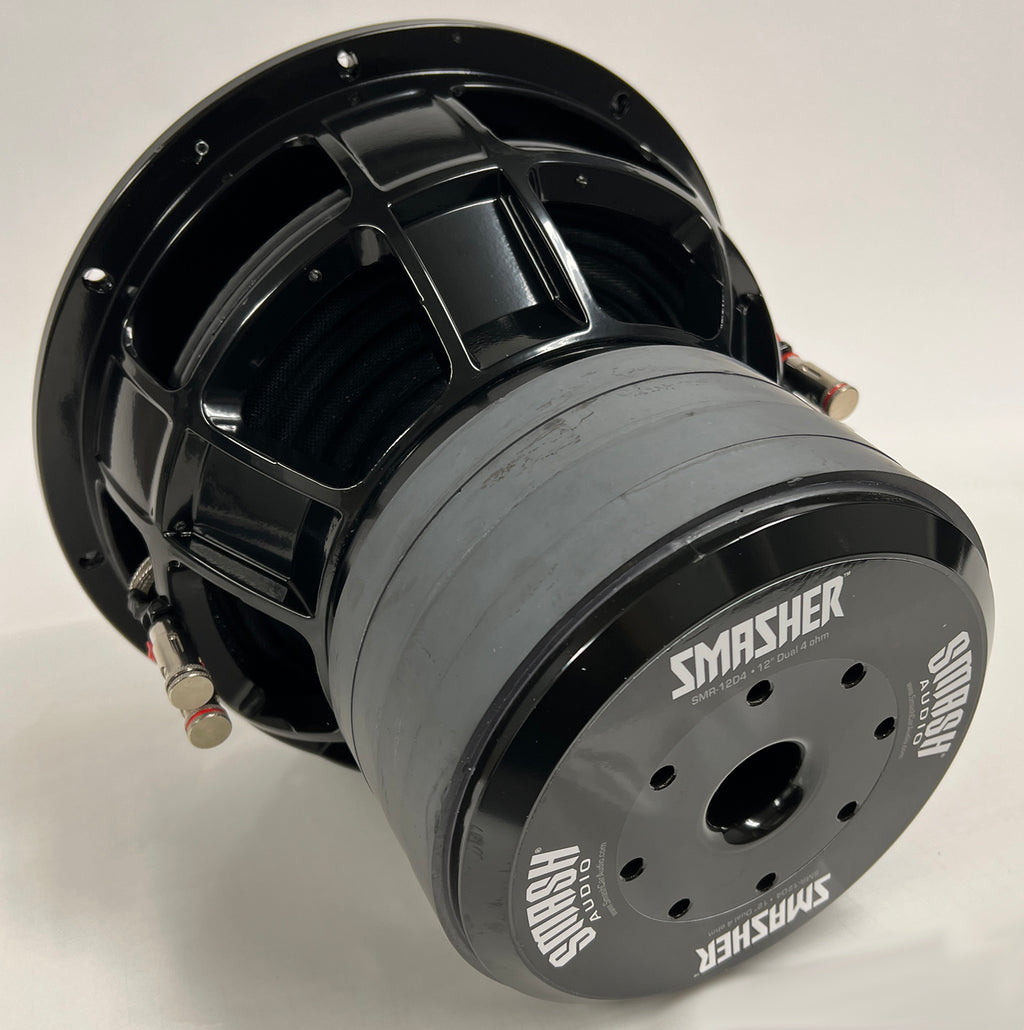

• Optimized 300 oz. ferrite magnet motor

• Quad stacked magnets

• Black vented back plate

• Binding post terminal

TS Parameters:

Normal Impedance (Z)  4+4 ohm
D. C. Resistance (Re)  3+3 Ohm
Resonance Frequency (Fs)  32.7  Hz
Total Q (Qts)  0.56
Mechanical Q (Qms)  3.14
Electrical Q (Qes)  0.69
Moving Mass (Mms) 330 g
Force Factor (BI)  24.5
Efficiency (SPL, 1W/1M)  82.5 dB
Equivalent Compliance (Vas)  22.7 L
Excursion (X-max, pk-pk)  60 mm
Woofer Displacement  0.14 / 3.96  ft3 / L
Woofer Net Weight (N.W.)  19.9 / 44  Kgs/lbs
Mounting Depth:  9.3 inches
Mounting Width:  11 inches
